Voltage range
11 kV - 400 kV
Steel grade
IS 2062 E250 / E350
Zinc coating
Min 86 microns (610 g/m2 avg)
Design standards
IS 802, ASCE 10-97
Fabricated Structure
Product Overview
Fully engineered angular lattice towers built from tested structural steel, drilled on CNC lines, and hot-dip galvanized in Nepal's largest kettle for lifelong corrosion protection. Every tower is trial-assembled before dispatch so field erection is bolt-for-bolt predictable.
Designs are prepared to IS 802, ASCE 10 and utility-specific loading trees, with wind and seismic cases modelled for the delivery region.
Key Features
verified
Steel tested to IS 2062 E250/E350 with mill certificates
verified
Zinc coating 610 g/m2 average to IS 4759 / ASTM A123
verified
CNC angle cropping, punching and marking for interchangeable members
verified

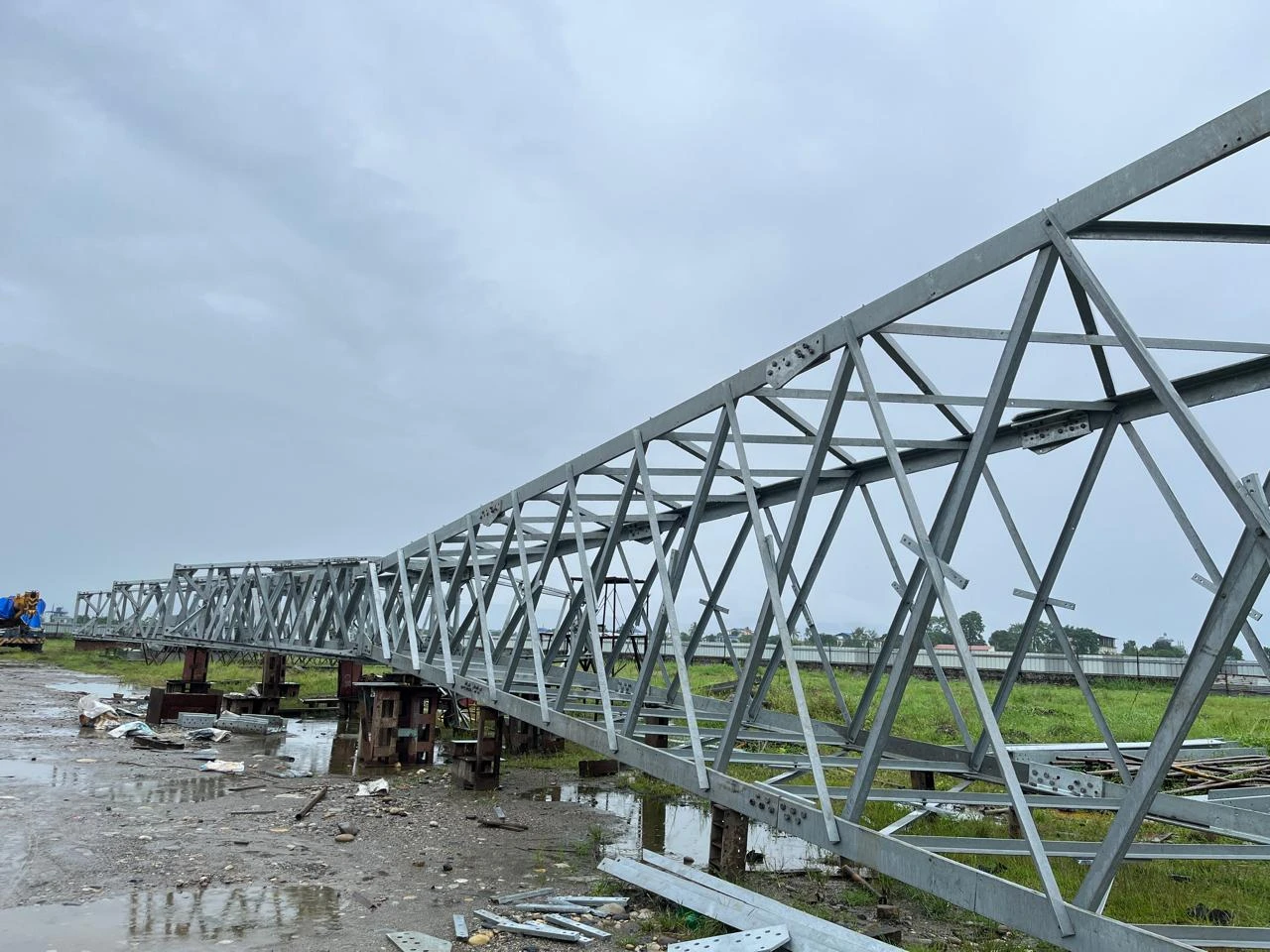

Full trial assembly and match-marking before galvanizing
verified
Galvanized bolts and nuts to IS 12427 with spring washers
Specifications
| Parameter | Value |
|---|---|
| Voltage range | 11 kV - 400 kV |
| Steel grade | IS 2062 E250 / E350 |
| Zinc coating | Min 86 microns (610 g/m2 avg) |
| Design standards | IS 802, ASCE 10-97 |
| Max kettle length | 8.5 m single dip / 14 m double dip |
| Wind speed design | Up to 47 m/s basic |
Applications
arrow_outward
Transmission and distribution lines
arrow_outward
Grid substation gantries
arrow_outward
River-crossing and special long-span towers
arrow_outward
Rural electrification programmes
Specify this product for your project
Share your drawings and service conditions with the Jalap Nepal team for a fabrication proposal.
